GMKIT Stainless Steel Exhaust

• ***THIS DOES NOT FIT THE QM SERIES ENGINES***
• This HDI Marine item replaces Yanmar PN 128370-13600 / 128370-13610 / 128270-13600 / 124070-13520 / 128370-13610 / 104214-13521 / 104214-13531 / 128990-13520
• Fits the following engines: 1GM
•  1GM10
• 3GM30
• 3HM
• 3HM35F
• 2GM *lower elbow can differ*
• GMF
• 3HMF
• 3GMF
• 2GM20 *lower elbow can differ*
• 2GM30
• 2GM20F *lower elbow can differ*
• 3GM30F
• YSM12 *lower elbow can differ*
• 3GM10
• 3GMD
• 2GM20
• 2GM30
• 2GM20F
• 2YM-15 *lower elbow can differ*
• 3YM-30 *lower elbow can differ*
• 3YM-30 *lower elbow can differ*
• 3YM-20 *lower elbow can differ*
• 3HM35
• Precision CNC machined investment cast 316 stainless steel
• Includes LH/RH yellow zinc plated stainless steel nipple as shown in photos replaces Yanmar PN 104214-13580 ($45.82 value)
• This assembly is shipped hand-tight, with proper anti-seize applied to the threads. Will need tightened with tools before install.
• Includes brass hose barb (water connection) that replaces Yanmar PN 124070-13300 ($28.09 value)
• Includes gasket that replaces Yanmar PN 128370-13201 (HDI PN “GGML”)
• Gasket size: 44mm x 72mm
• 3/8” pipe thread water inlet (5/8″ hose)
• 2” OD discharge diameter with 1-1/4 BSPT ID
• Product weighs 12 lbs (5.5kg)
• Shipping weight is 13 lbs (6kg)

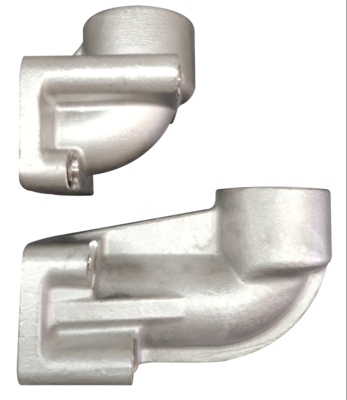

****PLEASE NOTE THE DIFFERENCE IN THE LOWER ELBOW IN THIS KIT****

****SOME MODELS OF YM CAN HAVE A SHORTER LENGTH LOWER EXHAUST BEND****

****PLEASE VISIT OUR OTHER PRODUCTS “GM” AND “YML” IF YOUR LOWER LOOKS LIKE THE TOP ELBOW IN THIS PICTURE****

***IF NEITHER OF THESE LOWER ELBOWS MATCH YOURS, PLEASE GIVE US A CALL TO CONFIRM WHICH PART YOU ARE NEEDING***
